■ Overview

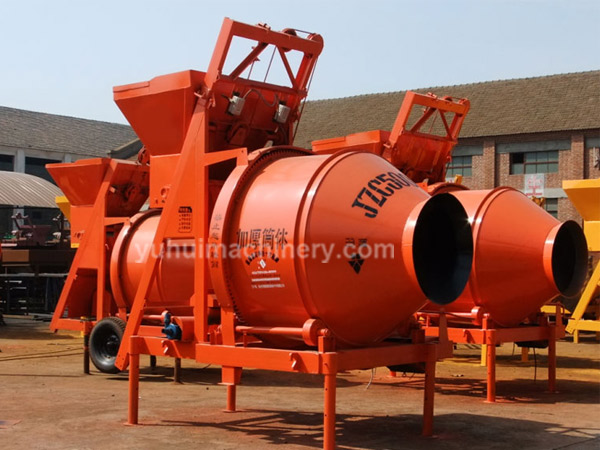

JZC Series Concrete Mixer:
JZC series concrete mixer is to mix for converse and discharge for reverse, which may mix plasticity and semi-rigid concrete. Its advantage has smooth working,convenient operation, good mixing quality and high productivity, etc. It can be combined to medium scale batching plant with feeding & weighing device, applies to common construction site, road, bridge and hydropower site, etc.
Features:
JZC series mini concrete mixer are bipyramid-type self-reverse mixers, concrete is mixed by drum rotating;The mixing drum is driven by rubber and belt;JZC350 and JZM500 are installed 2 tyres, named mobile concrete mixers;Adopt electric motor for power supply.
JZC series mini concrete mixer are driven by electric motors, which clockwise rotating for concrete mixing, and anti-clockwise rotating for concrete discharging.
The difference between JZM and JZC mini concrete mixer is the mixing drum force-transmit method. JZM adopts Rubber Friction-tape which transfer the powder from electric motors to mixing drum belt for rotating; JZC adopts Gear-set.
Lower capacity of JZM mini concrete mixer are equipped tyres for easily moving if necessary, such as JZM350 and JZM500. Because of JZM750 productivity and self-weight, we don't suggest install tyres for its position moving.
JZM series mini concrete mixer are also applicable to the small construction project, used for the variety of concrete production, mortar and grout.
JZC series concrete mixer is to mix for converse and discharge for reverse, which may mix plasticity and semi-rigid concrete. Its advantage has smooth working,convenient operation, good mixing quality and high productivity, etc. It can be combined to medium scale batching plant with feeding & weighing device, applies to common construction site, road, bridge and hydropower site, etc.
Features:
JZC series mini concrete mixer are bipyramid-type self-reverse mixers, concrete is mixed by drum rotating;The mixing drum is driven by rubber and belt;JZC350 and JZM500 are installed 2 tyres, named mobile concrete mixers;Adopt electric motor for power supply.
JZC series mini concrete mixer are driven by electric motors, which clockwise rotating for concrete mixing, and anti-clockwise rotating for concrete discharging.
The difference between JZM and JZC mini concrete mixer is the mixing drum force-transmit method. JZM adopts Rubber Friction-tape which transfer the powder from electric motors to mixing drum belt for rotating; JZC adopts Gear-set.
Lower capacity of JZM mini concrete mixer are equipped tyres for easily moving if necessary, such as JZM350 and JZM500. Because of JZM750 productivity and self-weight, we don't suggest install tyres for its position moving.
JZM series mini concrete mixer are also applicable to the small construction project, used for the variety of concrete production, mortar and grout.
■ Specifications
| Parameter | JZC250 | JZC350 | JZC500 | JZC750 |
| Discharging capacity | 250L | 350L | 500L | 750L |
| Charging Capacity | 320L | 560L | 800L | 1200L |
| Capacity | 6-8m3/h | 10-14m3/h | 18-20m3/h | 20-22m3/h |
| Drum rotating-speed | 17r/min | 14r/min | 13r/min | 13r/min |
| Max. aggregate size | 60mm | 60mm | 60-80mm | 60-80mm |
| Water feeding precision | ≤2% | ≤2% | ≤2% | ≤2% |
| Mixing motor | 4kw | 5.5kw | 11kw | 15kw |
| Hoisting motor | 4kw | 4.5kw | 5.5kw | 7.5kw |
| Water pump motor | 0.55kw | 0.55kw | 0.75kw | 1.1kw |
| Tyre spec. | 6.50-16 | 6.50-16 | 7.50-16 | |
| Max. dragging speed | 20 km/h | 20 km/h | 20 km/h | |
| Dimension (L x W x H mm) | 2260x1990x2750mm | 2766x2140x3000mm | 5226x2200x5460mm | 6116x2056x6060mm |
| Total weight | 1300kg | 1950kg | 3100kg | 4200kg |
|
