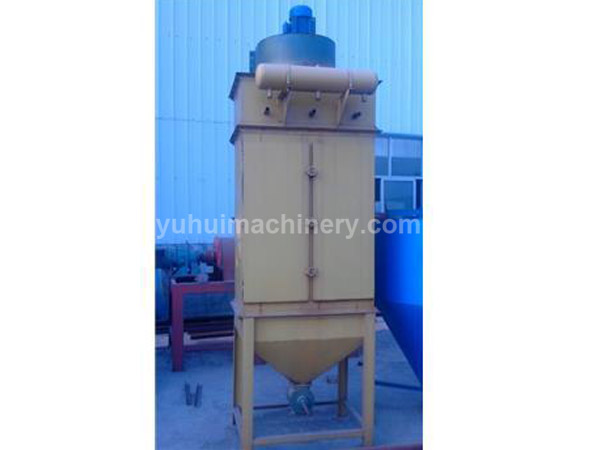

The device has the following main components

1. Cabient: including bag room, advance dust room, clean air chamber, perforated plate, filter bag, filter bag skeleton, the access door. cabinet design pressure 5000 pa
2. The wind system: including draught fan, fan motor.
3. blowing system: the main trachea, spray torch, pulse valve, control apparatus.
4. Intake of ash discharge part have two forms: one for the standard with ash bucket, another for open flange.

Technical Parameters of Pulse Dust Collector

Data Spec	Filter area (m2)	Velocity of wind (m/min)	Thickness of inlet (g/m3)	Thickness of output (mg/m3)	Running resistance (MPa)	Pressure of deashing (MPa)	Air consumption (m3/min)	Outside measurement (L×W×H)
HLGF-40	40	0.52	60300	≤50	0.781.5	0.60.7	0.3	1995×2800×4600
HLGF-60	60	0.52	60300	≤50	0.781.5	0.60.7	0.3	2295×3142×4600
HLGF-92	92	0.52	60300	≤50	0.781.5	0.60.7	0.3	3015×3332×4600
HLGF-120	120	0.52	60300	≤50	0.781.5	0.60.7	0.5	3735×3332×4600
HLGF-150	150	0.52	60300	≤50	0.781.5	0.60.7	0.5	4645×3332×4600
